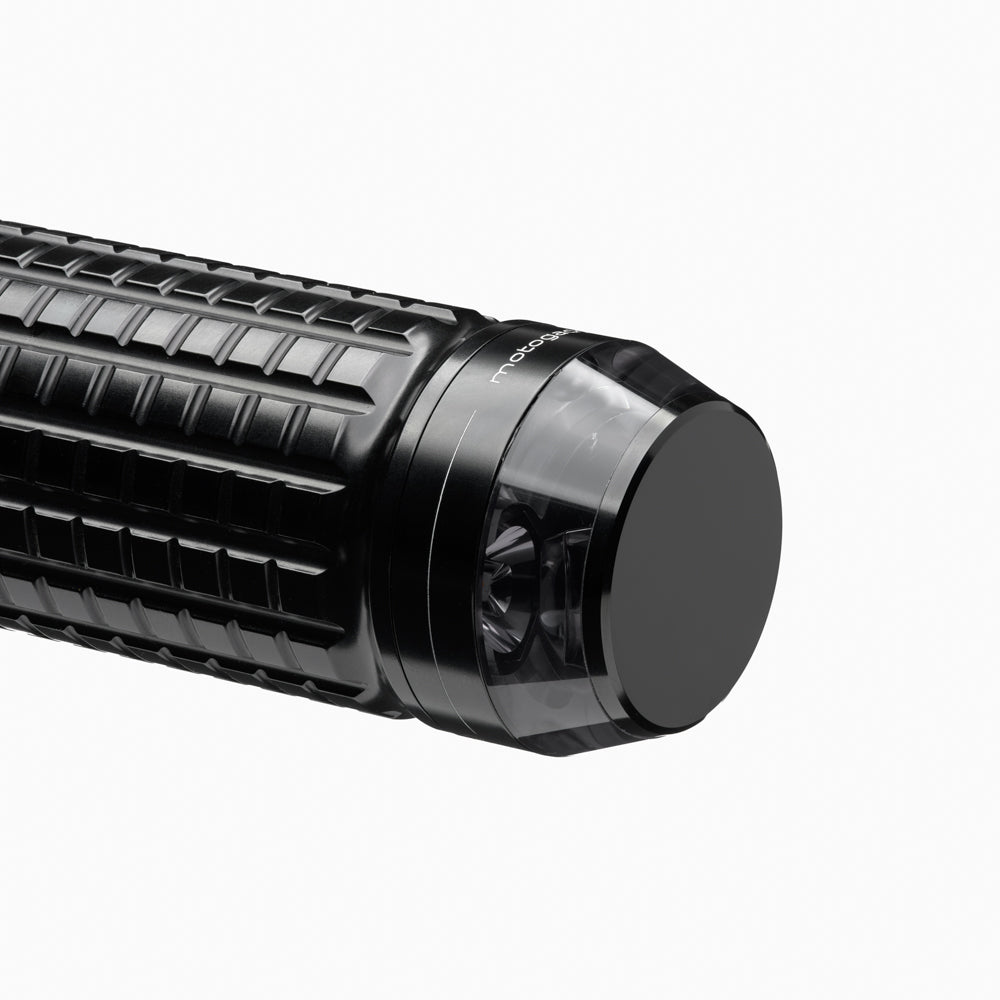

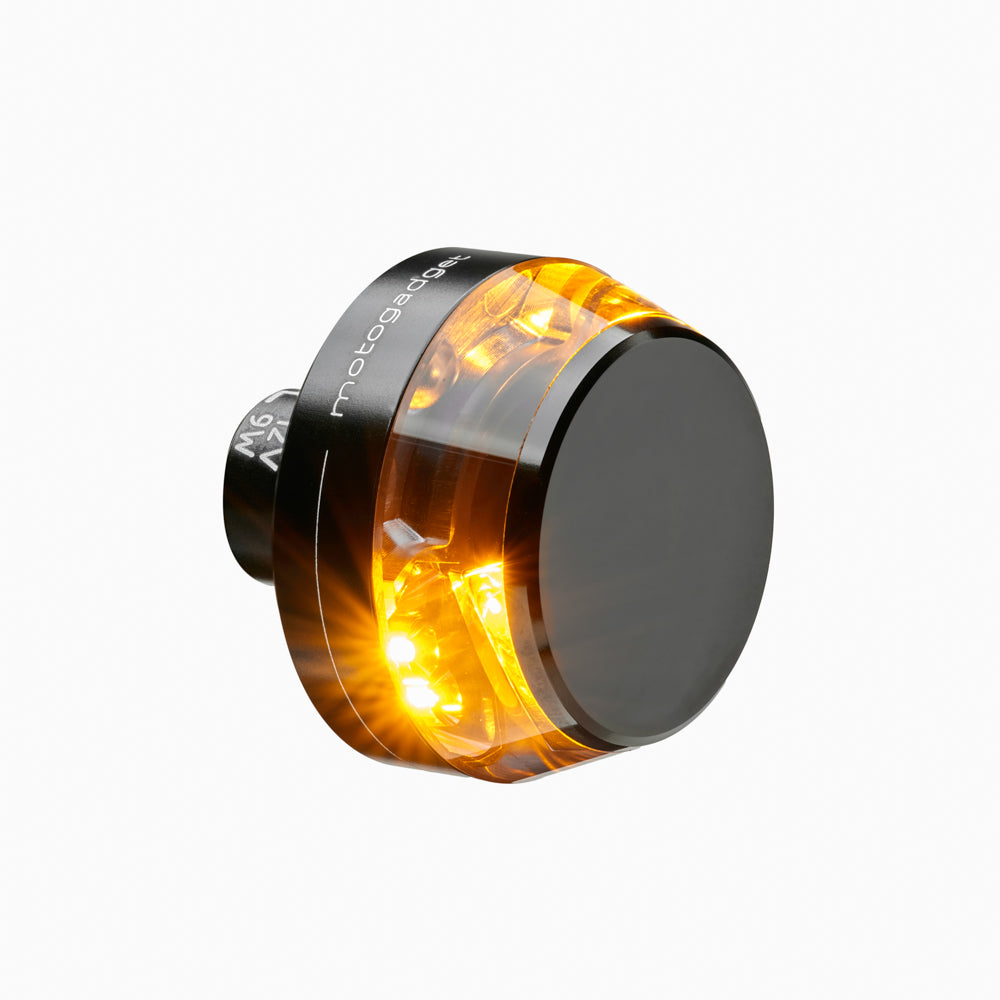

mo.blaze disc dark

The mo.blaze disc is the latest generation of turn signal light.

The characteristic feature of the LED blinker is the transparent lens on
a compact aluminum base, which harmonizes with the handlebar end grip.

Our now third turn signal, which uses the new TranzLight technology (TLT, patent pending). This progressive development approach is not limited to simple miniaturization of turn signal housings, but designs the light directly via a crystal-like plastic body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this novel design and its function possible.

The light flux required for the TranzLight principle is generated by the intensiLED® process developed by

intensiLED® process developed by motogadget and consists of three important components:

• Selected high-performance LEDs with maximum efficiency and a total output of 9W with a service life of more than 50.000 hours

• an IC-controlled constant current regulation clocked at 330kHz

• a special collimator optic that couples the light from the LED precisely into the plastic body

Thediscreet aluminum housing is only used for the stable attachment of the glass body and the integration of control electronics and high-end LEDs. It goes without saying that the housing is CNC-machined, black anodized or high-gloss polished and finely laser-marked.

The handlebar end indicator builds very flat and appears through the transparent disc neutral and inconspicuous. Thus, it fits many styles and the most diverse motorcycles. The flasher can be operated like any other LEDflasher with load resistors or all our load-independent flasher relays (mo.flash, mo.wave, mo.stop, mo.relay+).

The handlebar end blinker mo.blaze disc presented here has an E-mark and is ECE-approved as a front blinker.

• Diameter: 35 mm (1.38")
• Total length: 68 mm (2.68") (visible 20 mm / in the handlebar 48mm)
• Voltage: 12V
• Power: 9W
• Waterproof Protection: IP69
• Vibration resistant
• 3 x high-power LEDs (2 to the front, 1 to the rear)
• Service life: 50.000h
• Cable length: approx. 100 cm (39.4")
• Weight approx. 50g / 0.11 lbs

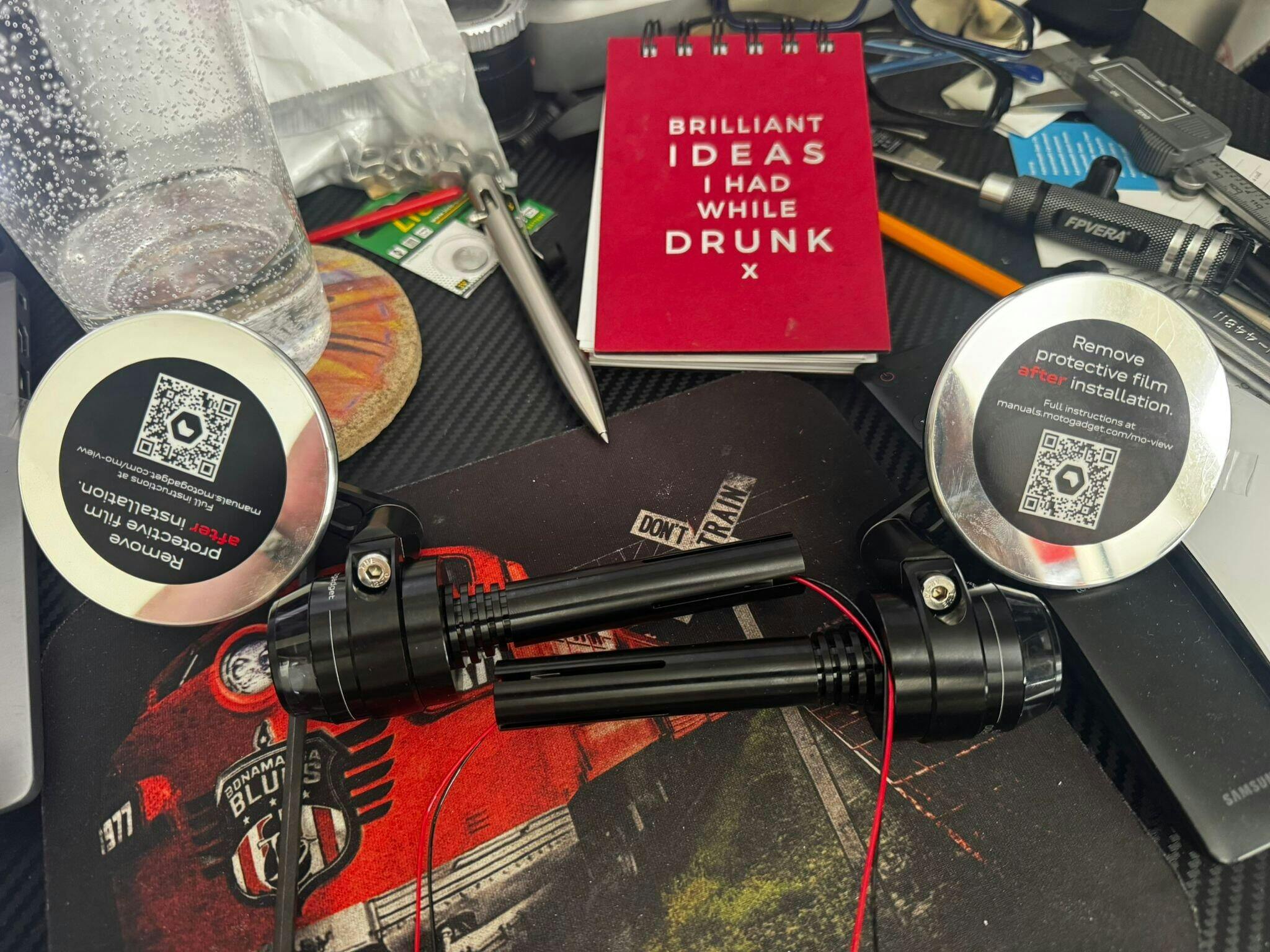

• 1 x handlebar end indicator mo.blaze disc (left or right)
• Clamp for steel and aluminum handlebars (22 mm and 1 inch) with an inner diameter of 14 mm (0.04") to 21 mm (0.826")
• Connection cable with 100 cm (39.4") length
• 2 x 3M Scotch Lok connectors
• QR code for mounting and operating instructions

For use as a pair, please order one left and one right turn signal.
