bar extension universal (Set)

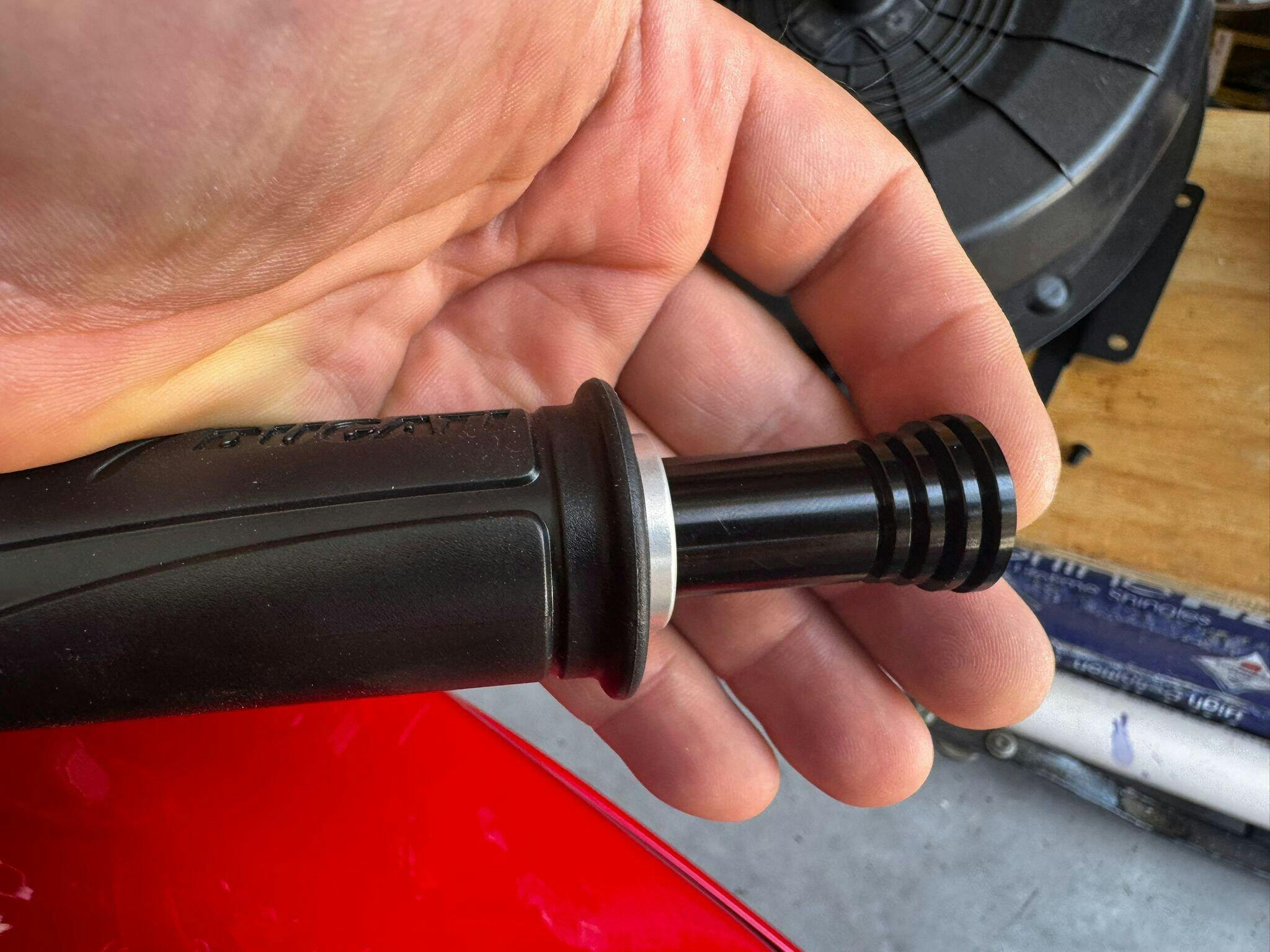

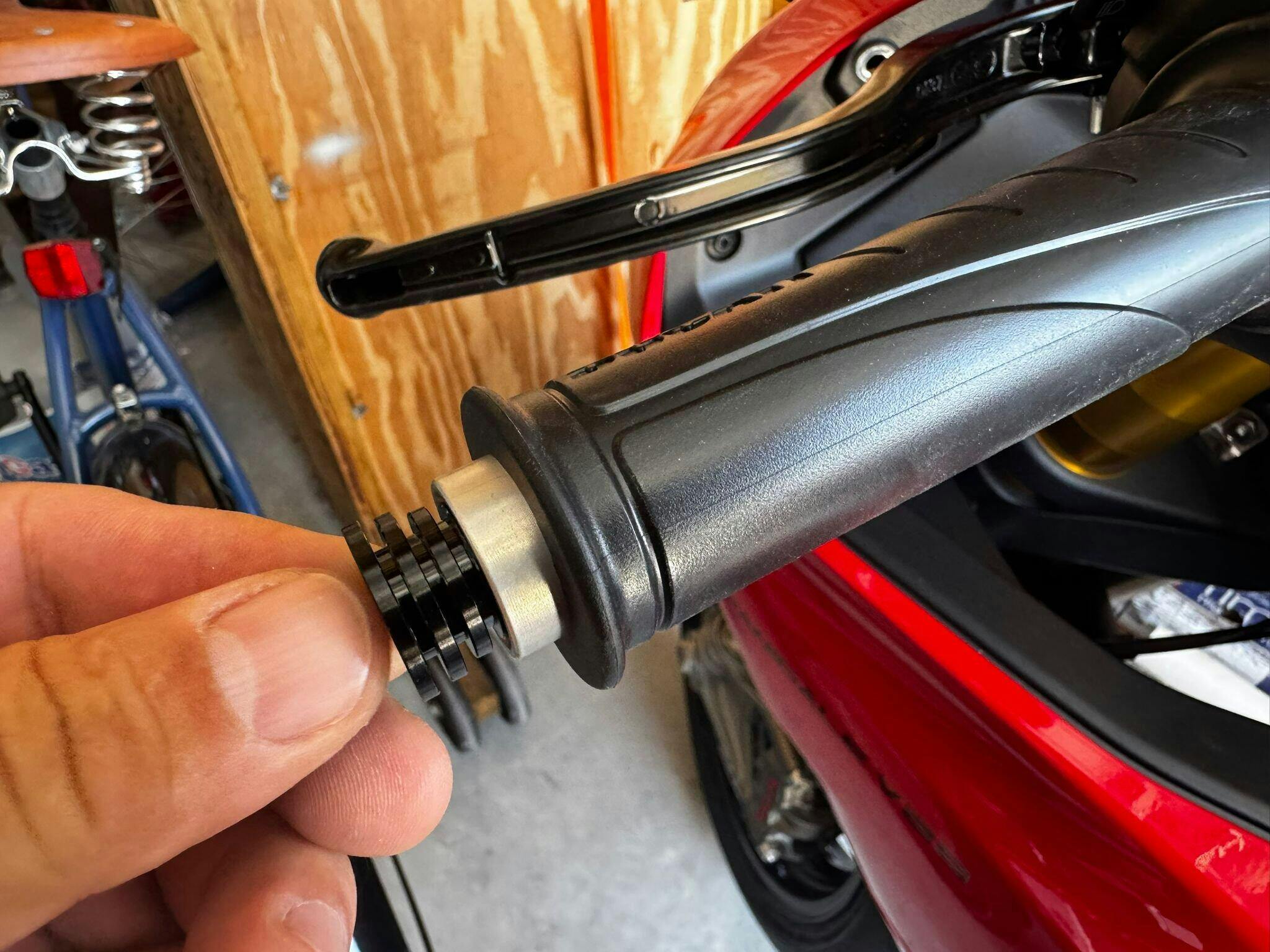

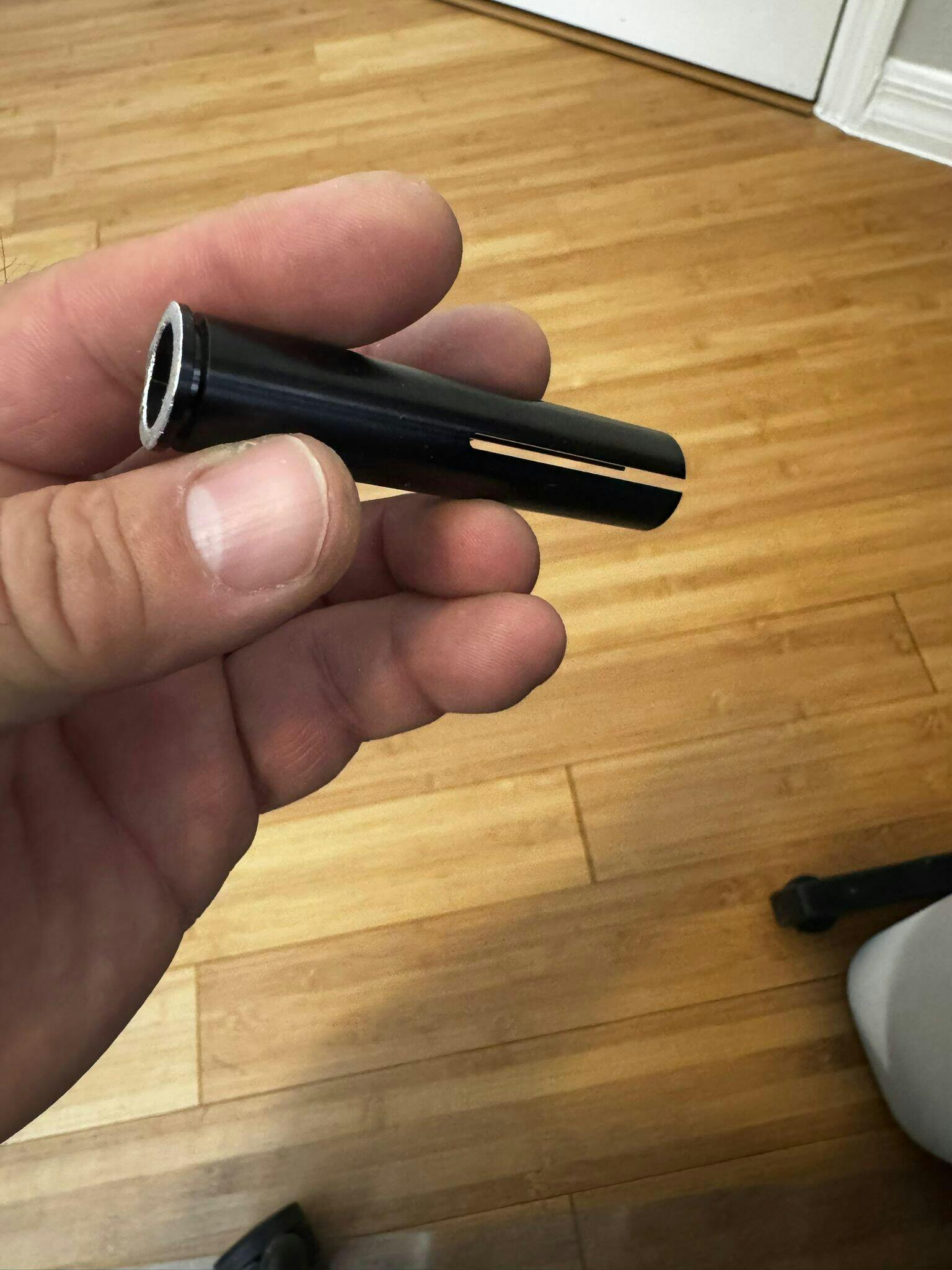

motogadget's universal bar extensions are CNC machined from billet aluminum and anodized black for durability. The clamping in the end of the handlebar is done by tightening a M6 screw inside the adapter, which expands the clamping pieces and allows a stable mounting. Mirrors or indicators are not included and must be purchased separately.

Execution for mo.view mirrors:

Allows mounting of all mo.view handlebar end mirrors without moving the grips or fittings on the handlebar. It creates a clamping surface for the handlebar end mirror outside the steering tube. The screwable cap lid is concave in design and decorated with a crown on the outside.

The universal bar adapter cap comes with two clamps for the left and right side of the handlebar. It is mounted directly in the end of the handlebar (22 mm, 7/8" and 1") with a free inside diameter (without internal thread) from 12 to 21 mm (0.472-0.827").

Execution for mo. blaze disc or cone:

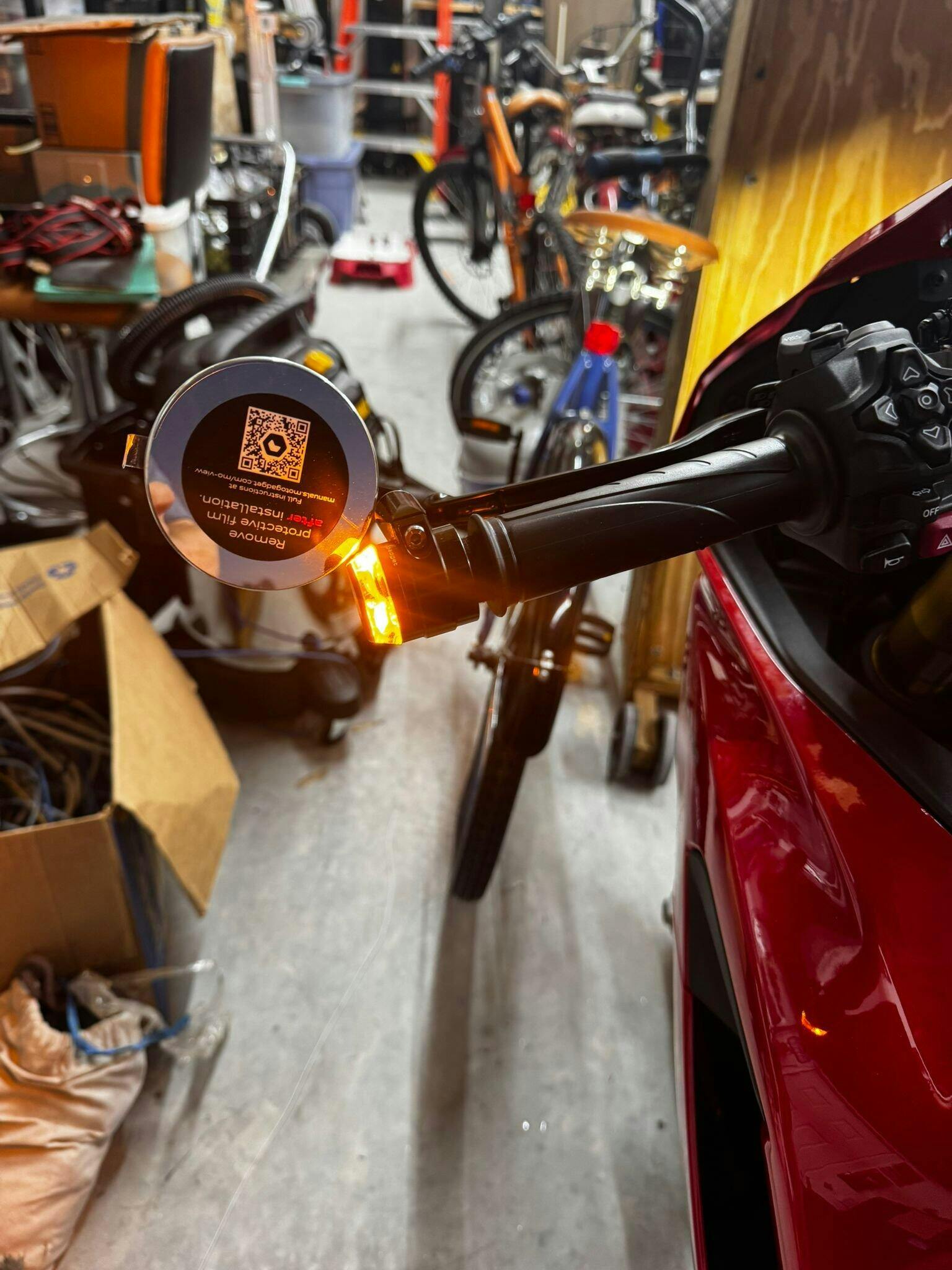

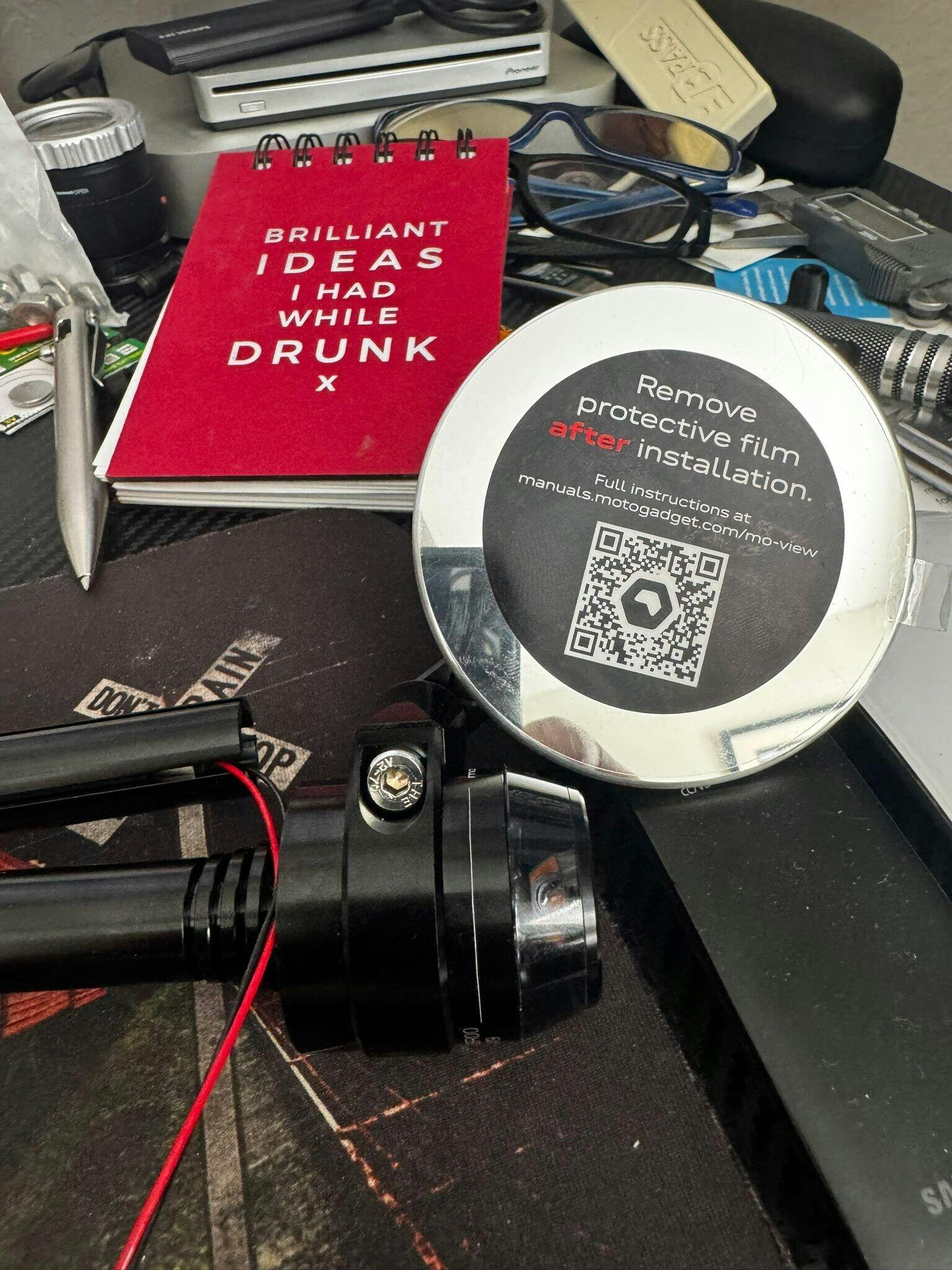

Allows mounting of all mo.view handlebar end mirrors in combination with the mo.blaze handlebar end turn signals without moving the grips or fittings on the handlebar. It creates a clamping surface for the handlebar end mirror outside the steering tube and at the same time allows the mounting of the handlebar end turn signal.

Tightening the mirror clamp on the adapter simultaneously clamps the handlebar end turn signal. The universal bar adapter for mo.blaze disc/cone is supplied with two clamps for the left and right side of the handlebar. It is mounted directly in the end of the handlebar (22 mm, 7/8" and 1") with a free inner diameter of 12 to 21 mm (0.472-0.827" without internal thread) and a length of 90 mm (3.54").

1 pair (2) universal bar extensions
