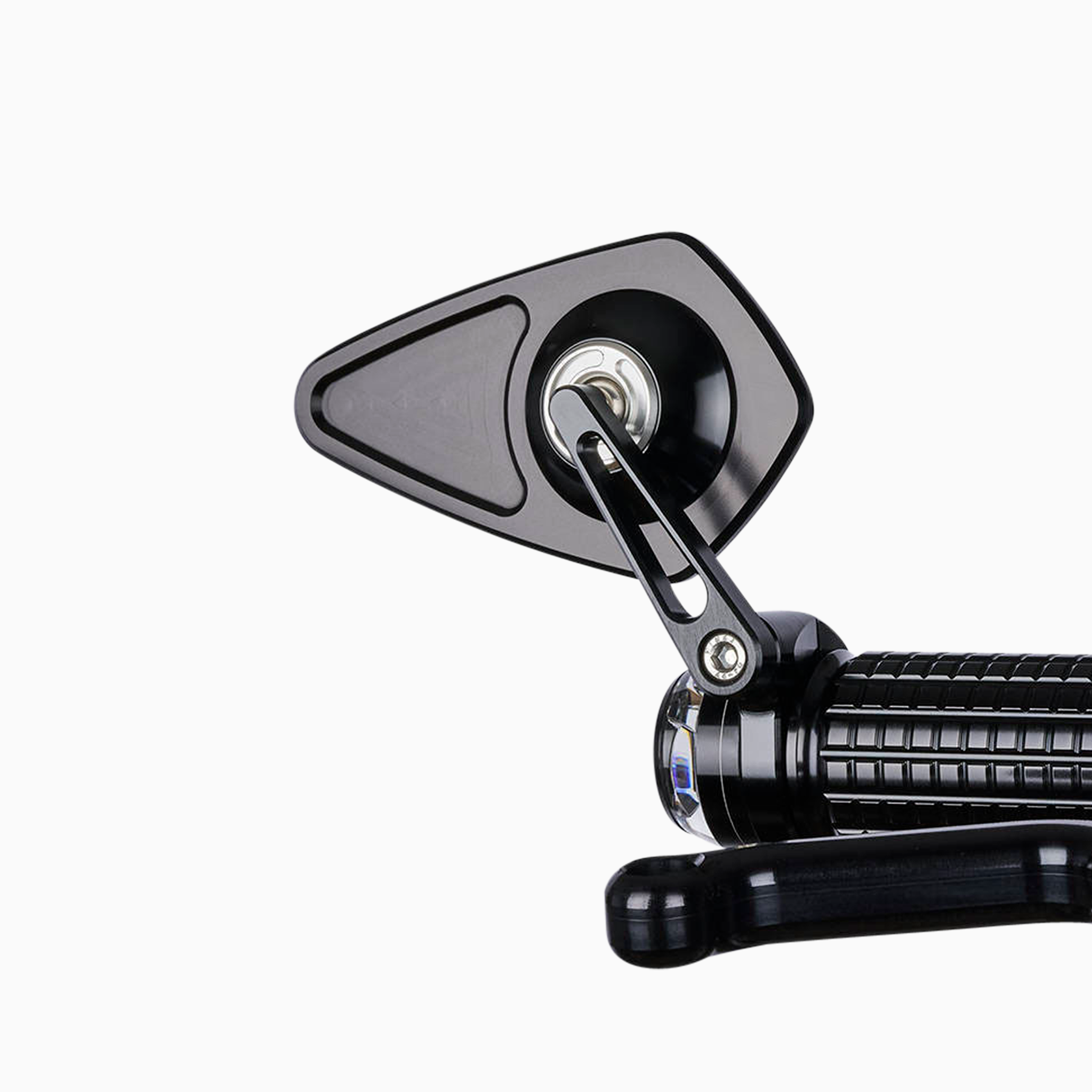

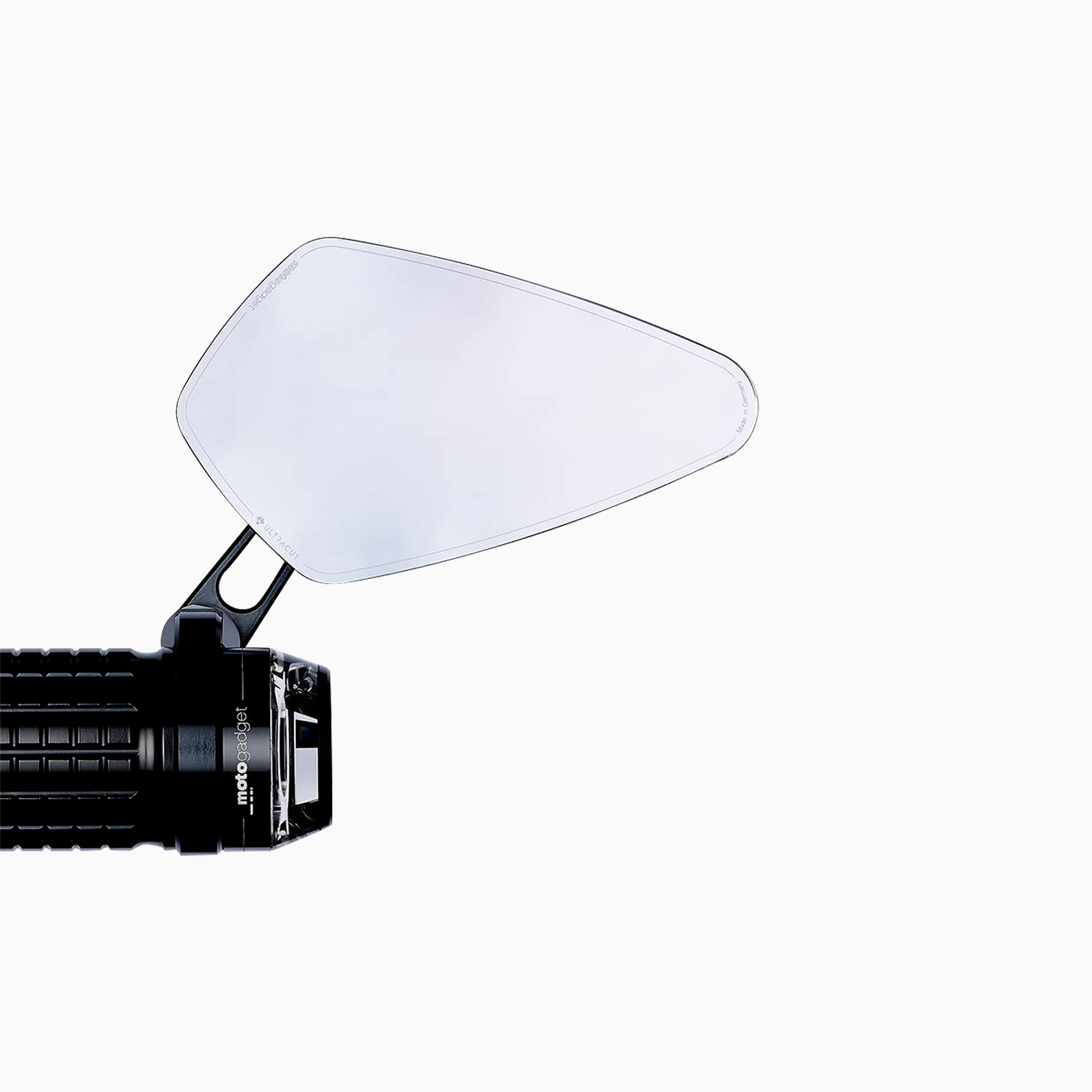

mo.view blade 50

Our mo.view glassless mirror series stands out as a global innovation. What sets these mirrors apart is the patented mirror surface, which is meticulously crafted directly from the metal of the mirror body. In essence, the aluminum itself serves as the mirror surface, resulting in an exceptionally thin and lightweight mirror body with a frameless, sleek design. The convex mirror surface is precision-engineered using diamond tools on ultra-precision machines at our Berlin facility. To enhance durability, the mirror undergoes a complex plasma coating in a vacuum, making it highly resistant to oxidation, corrosion, and abrasion.

The mirror body, mirror arm, and handlebar clamp are all precision-milled from solid billet aluminum using CNC machines and finished to the highest standards with anodization. Each screw used is made of stainless steel. The precise ball joint mechanism allows for comfortable and stable mirror adjustment, ensuring that issues like glass breakage or glass falling out are a thing of the past.

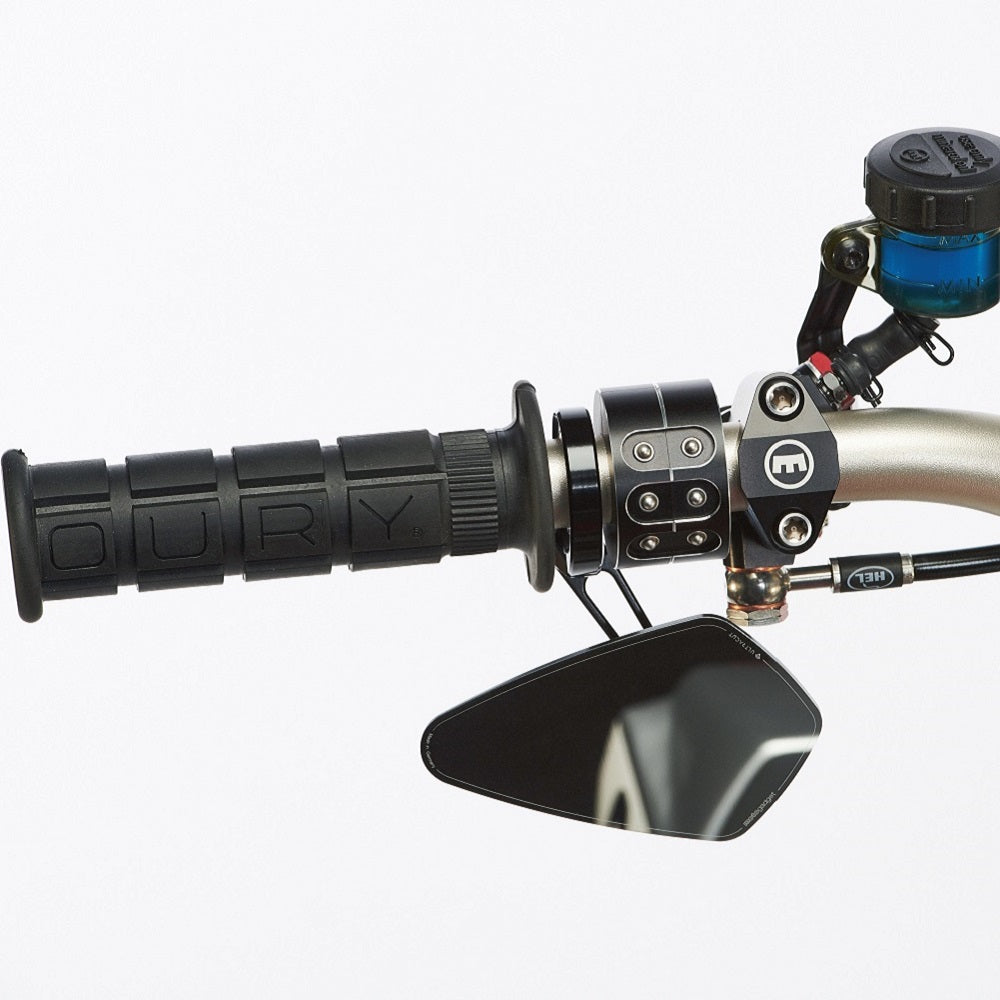

The mirror can be mounted both above or below the handlebar and is suitable for the right and left side. Mounting is directly on the end of the handlebar (22.2 mm and 1 inch). If the grips and fittings cannot be moved, using a mo.view bar adapter allows for a proper installation.

The size of the mirror surface does not comply with StVZO and it has no ECE marking.

• Mirror body width: 100 mm (3.94")
• Mirror body height: 60 mm (2.36")
• Thickness of the mirror body without ball head: 4 mm (0.157")
• Length of the mirror arm: 61 mm (2.40")
• Clamp diameter: can be used for 22.2 mm (7/8") and 1" handlebars
• Clamp width: 8 mm (0.315")
• Weight: 94 g / 0.207 lbs / 3.32 oz

• 1x mo.view blade 50 mirror (without ECE marking) with arm
• 1x clamp
• QR code for mounting and operating instructions
