mo.view club 130

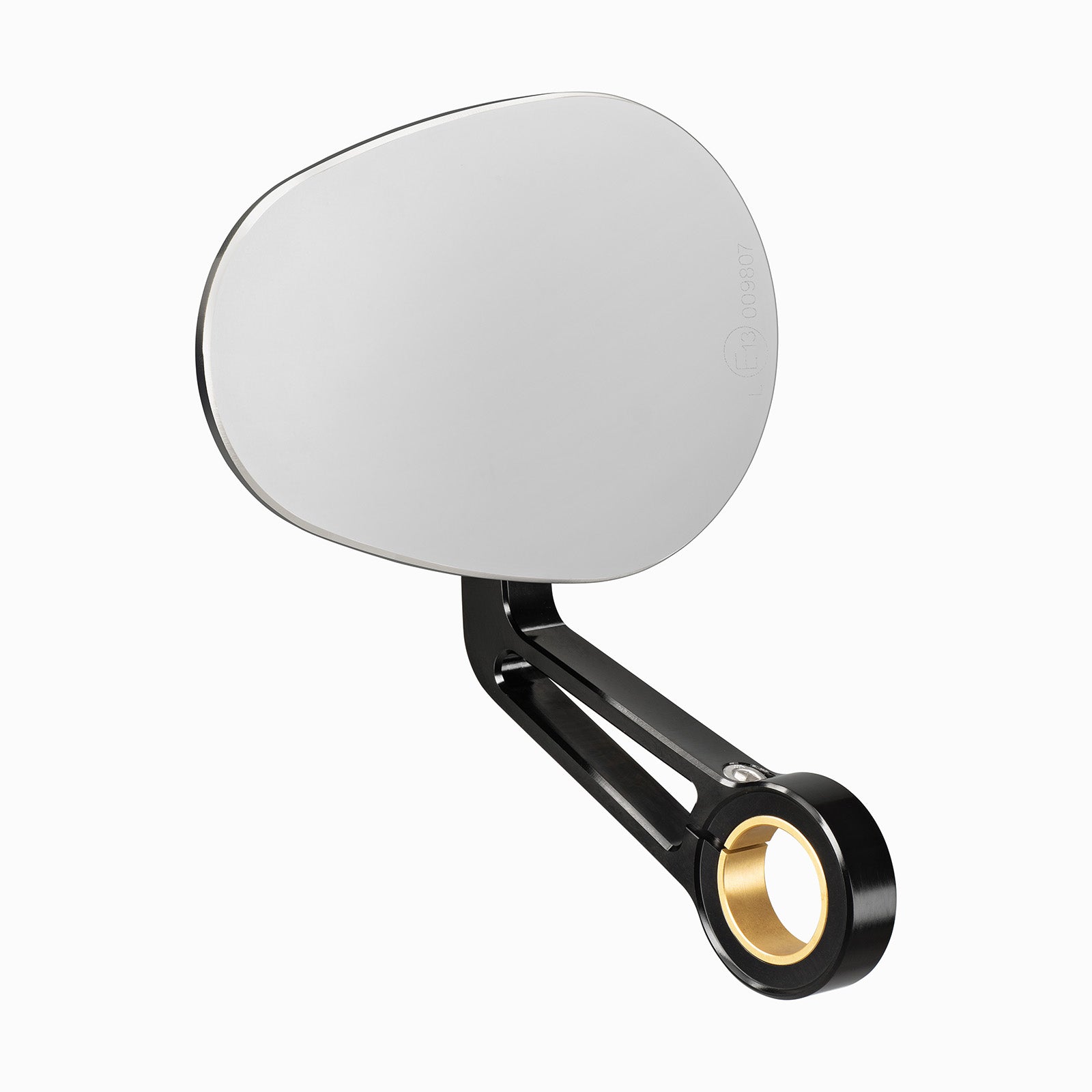

Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminum itself is the mirror surface.

The mirror body itself is very thin and light, resulting in a weightless design without a rim or frame.

The convex mirror surface is produced by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

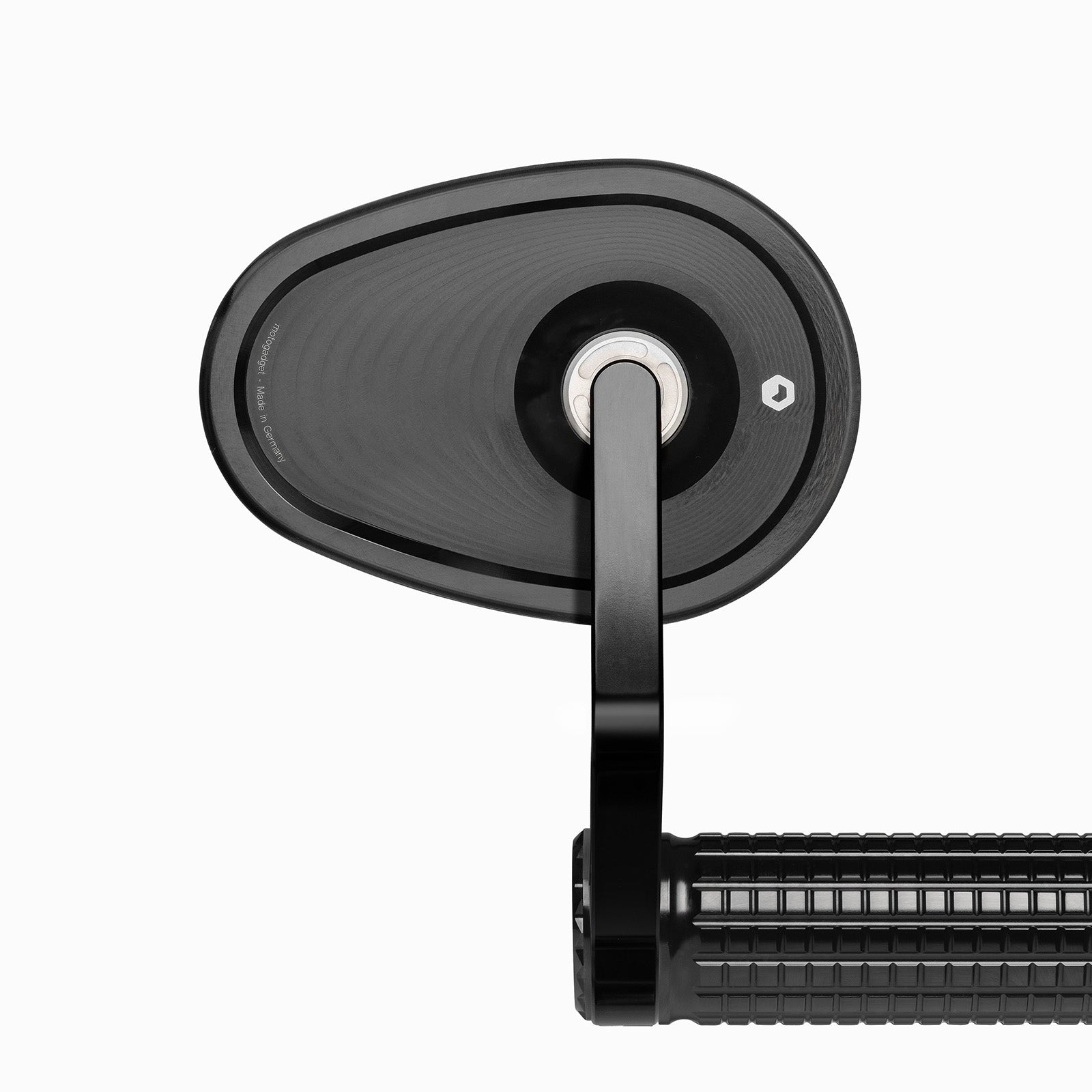

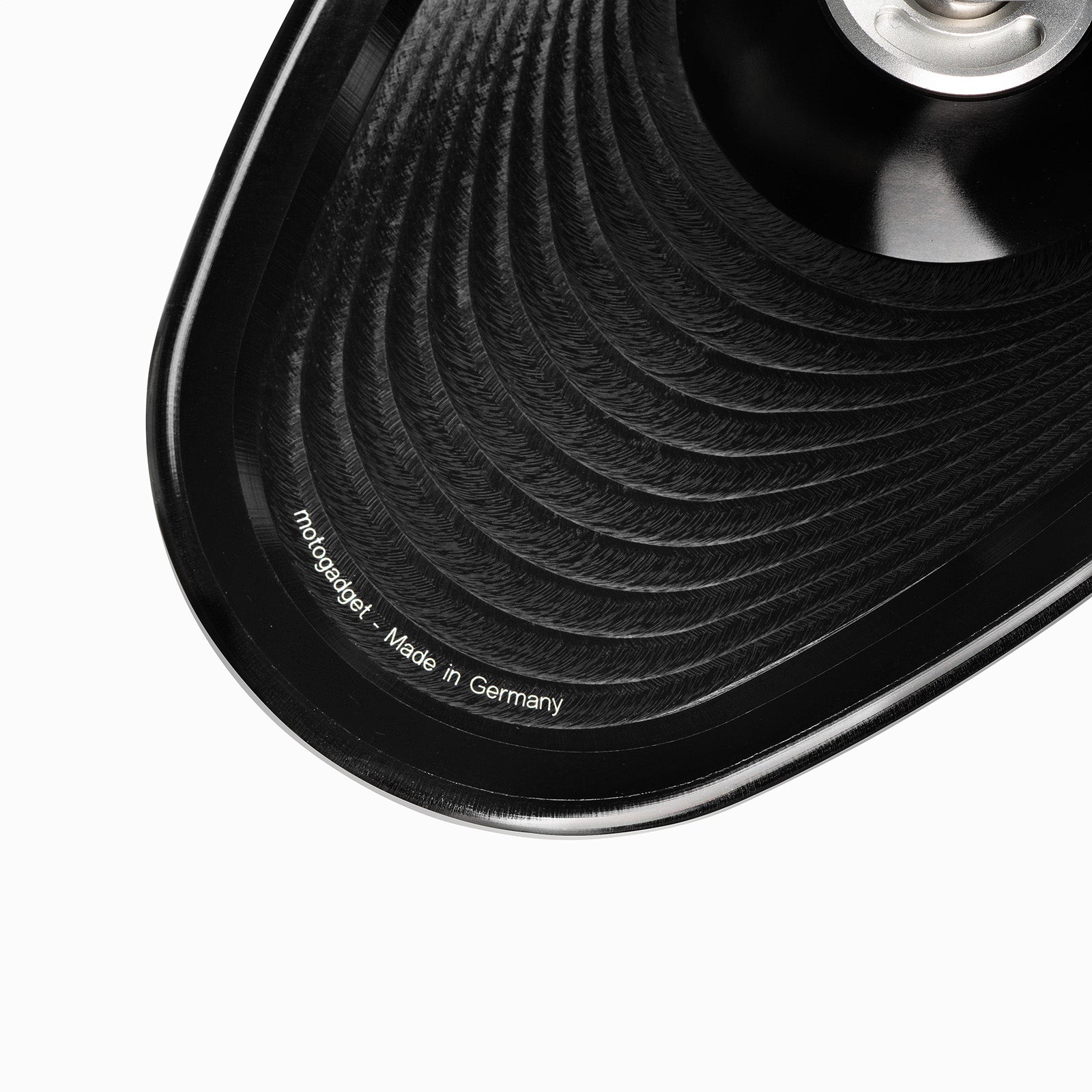

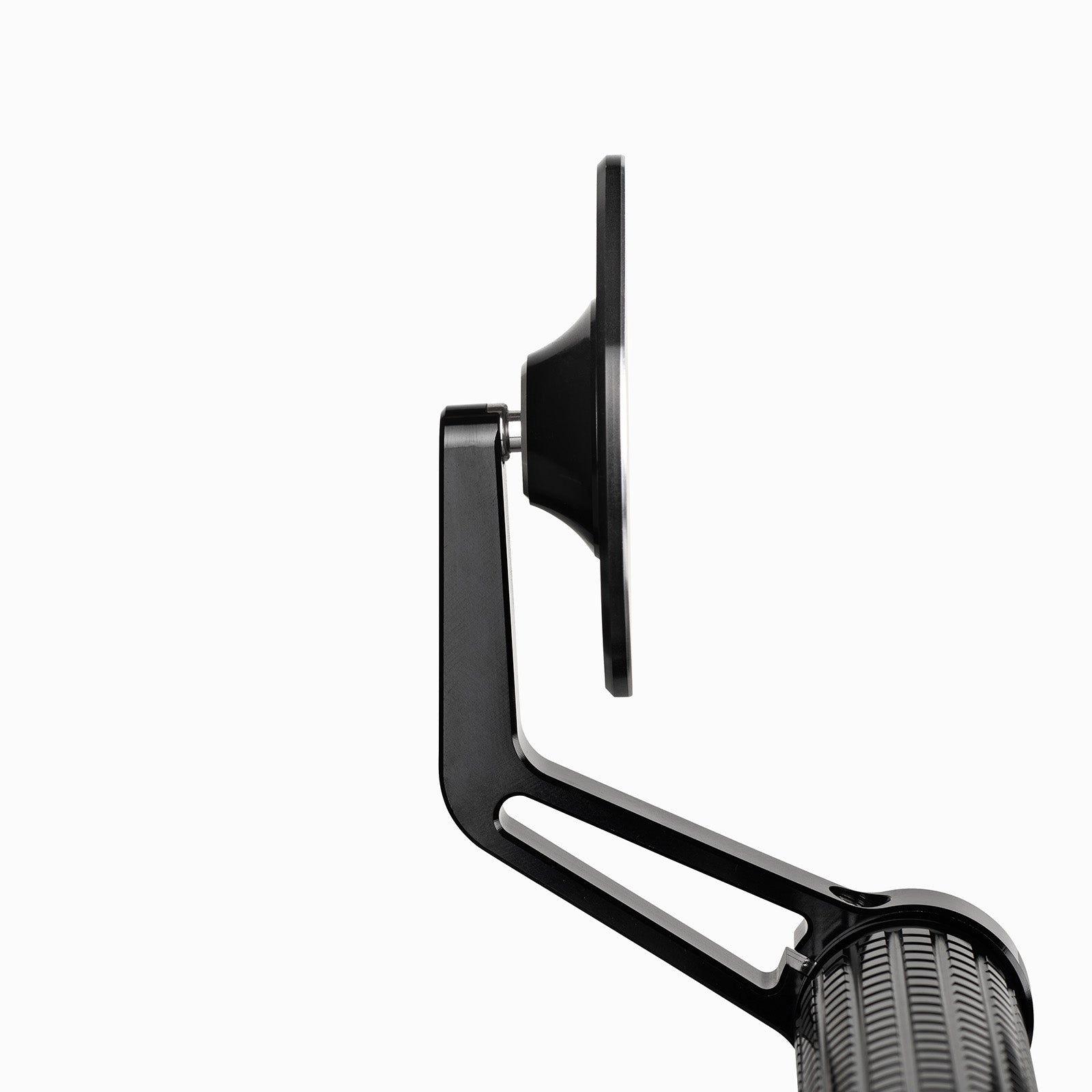

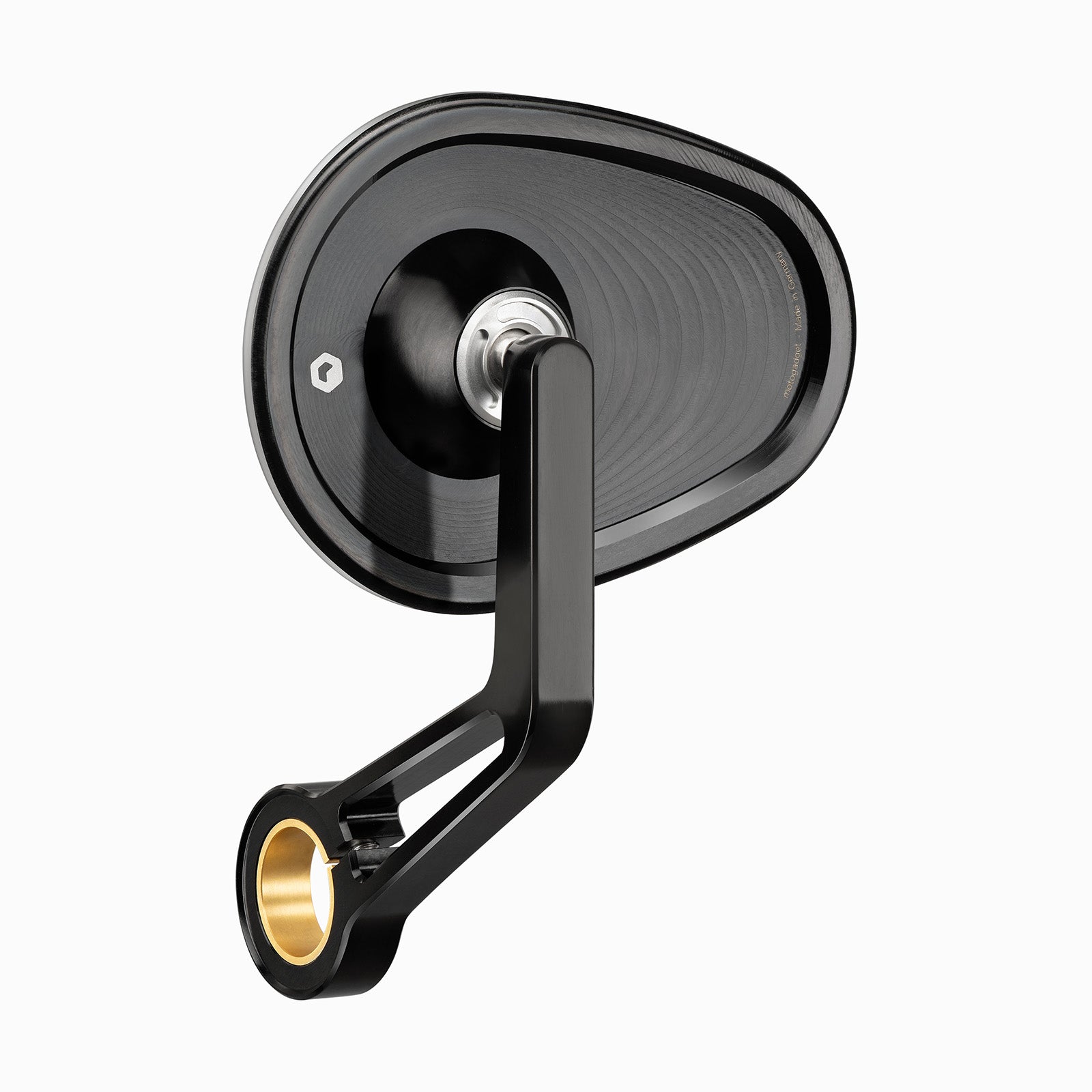

The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible.

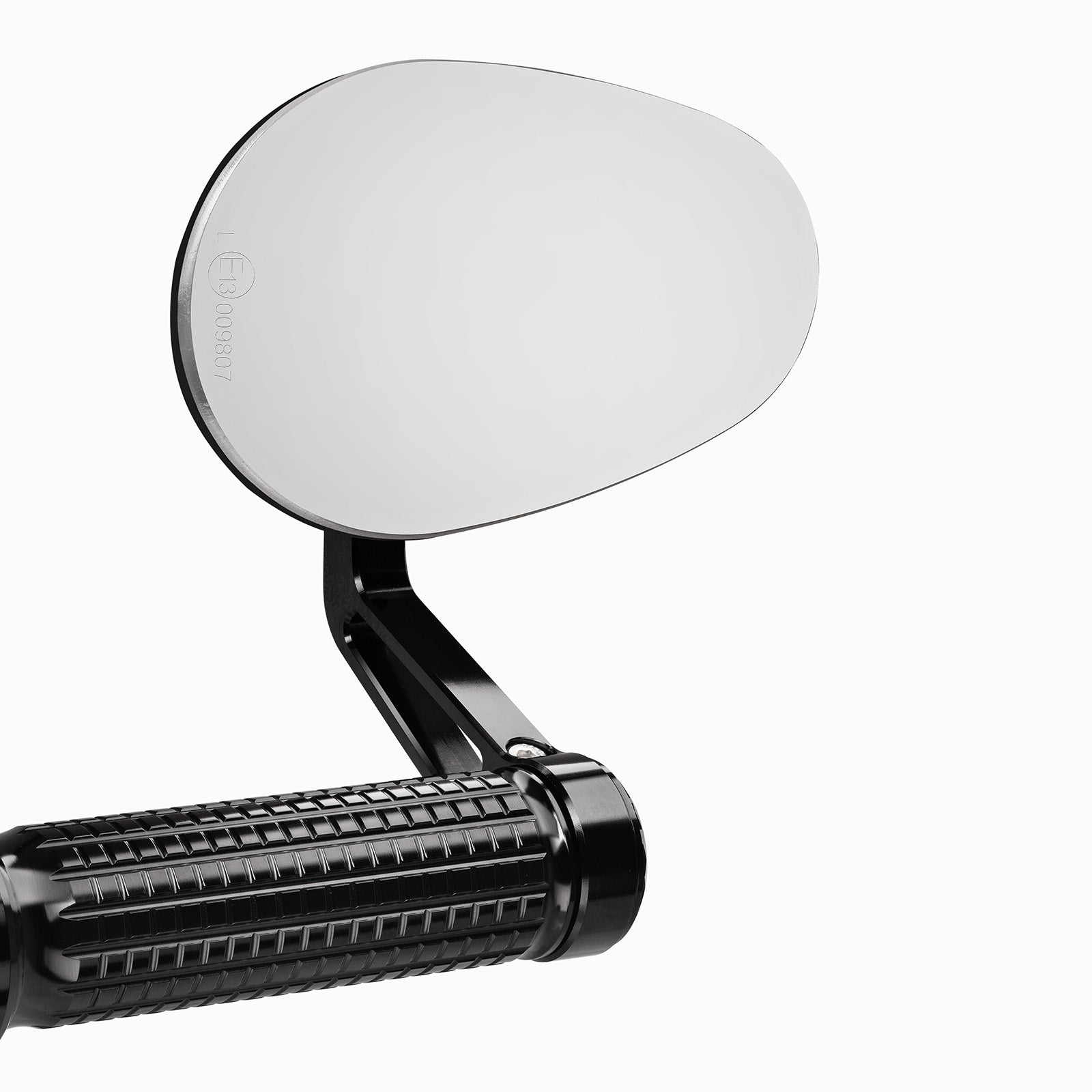

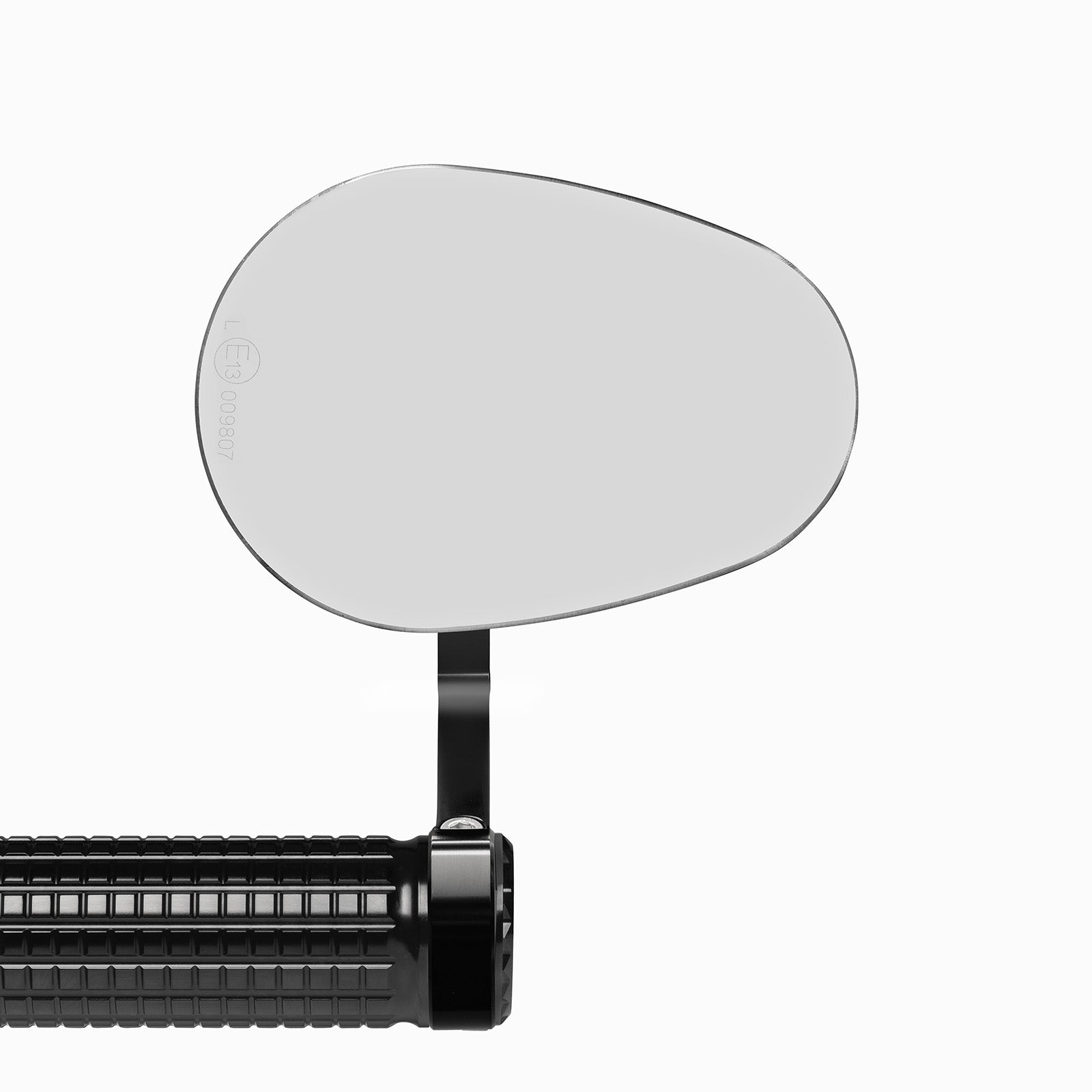

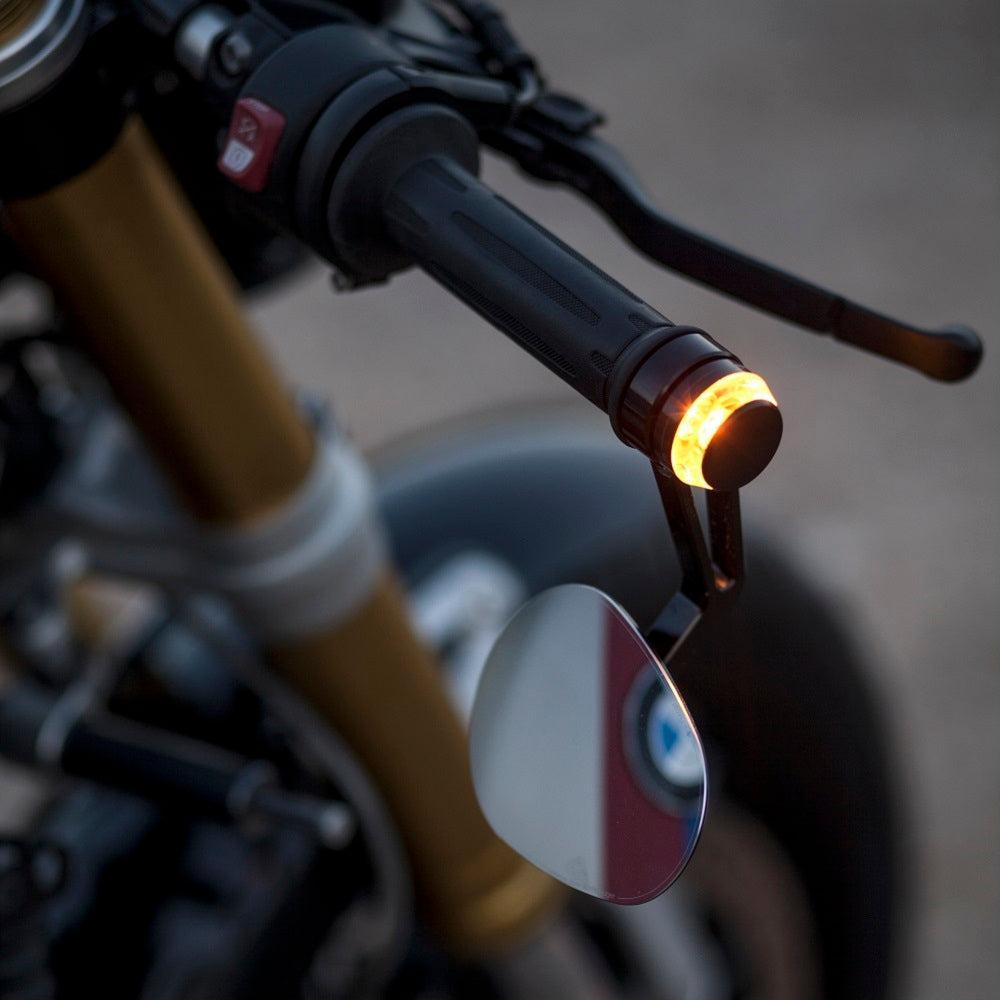

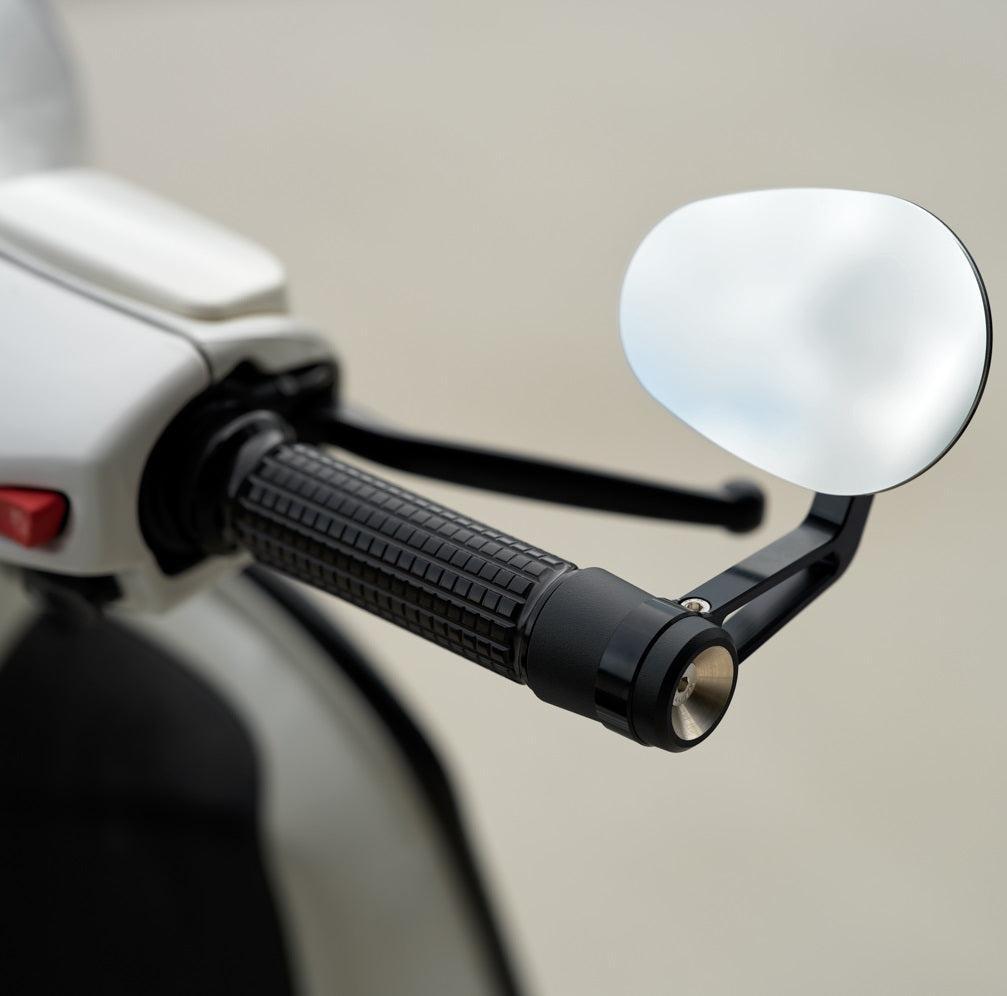

The handlebar end mirror can be mounted above or below the handlebars. The small arm can be swiveled. The mirror is suitable for the right and left side. It can be mounted directly on the handlebar end (22.2 mm and 1 inch) or, if the grips and fittings cannot be moved, using the mo.view bar adapter.

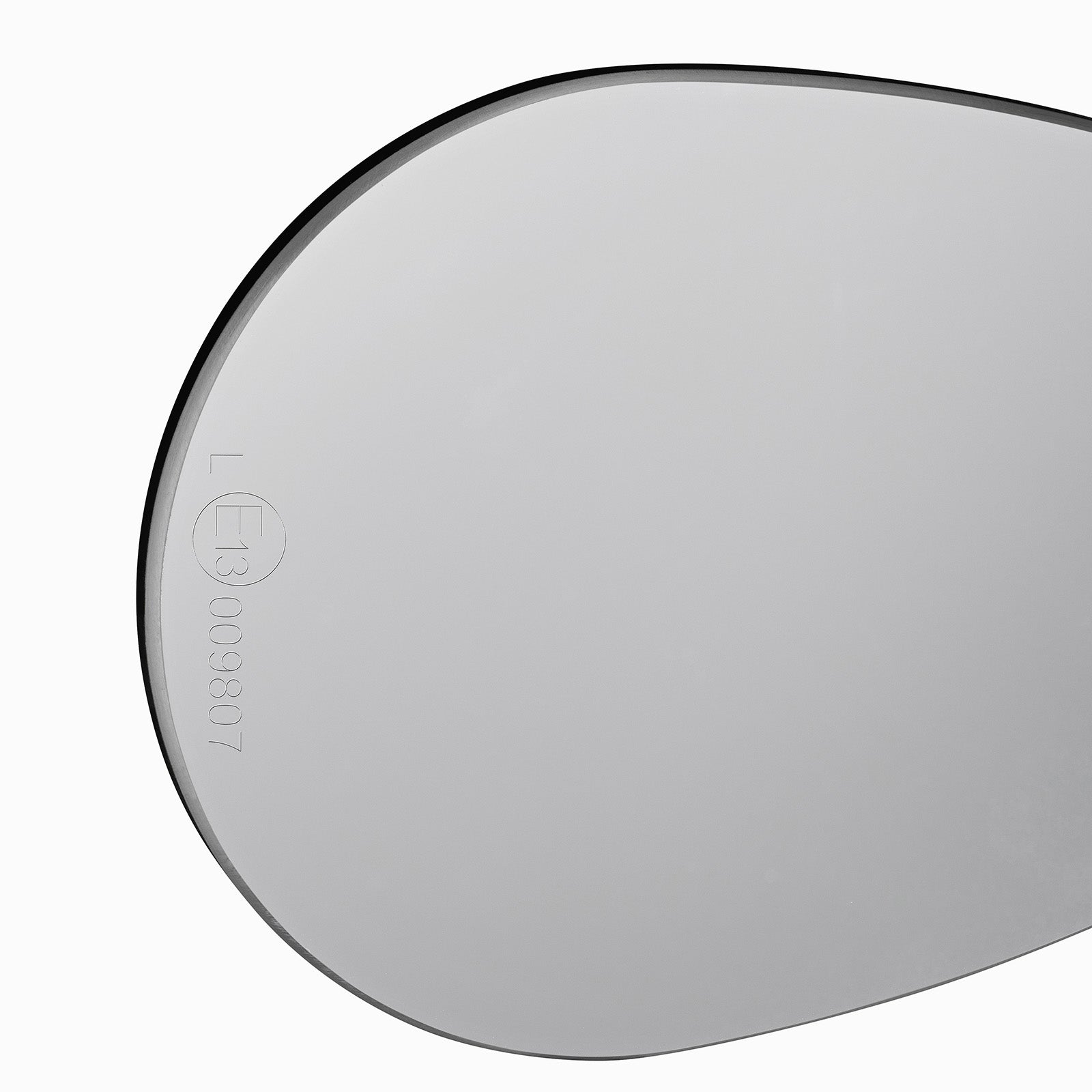

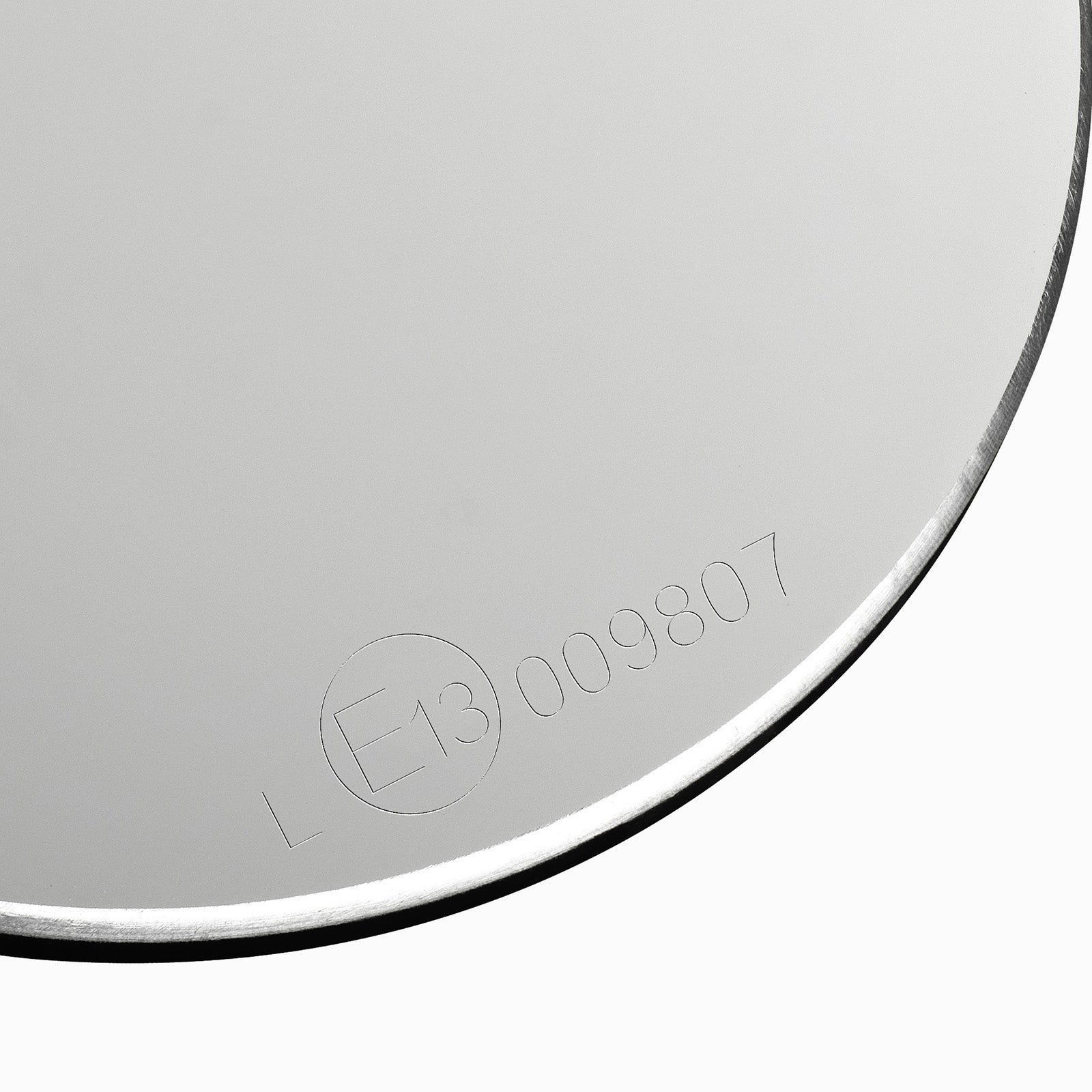

The size of the mirror surface complies with the StVZO and he has an ECE marking. Thus suitable for any motorcycle without registration.

Cleaning: Use a mild cleaning agent and a microfiber cloth to remove dirt, dust and other residues from the surface of the mirrors. Avoid abrasive cleaning agents that could damage the surface.

• Mirror body width: 114 mm (4.488")
• Mirror body height: 80 mm (3.149")
• Thickness of the mirror body without ball head: 4.5 mm (0.177")
• Length of the mirror arm: 110 mm (4.33")
• Clamp diameter: can be used for 22.2mm and 1" handlebars
• Clamp width: 12 mm (0.472")
• Weight: 150 g / 0.33 lbs

• 1x rear-view mirror mo.view club 130 (with ECE marking) with arm
• 1 x clamp
• QR code for mounting and operating instructions
