mo.view club 180

Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminum itself is the mirror surface.

The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by flycutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.

The mirror body and mirror arm are milled from solid aluminum on CNC machines and anodized to high quality. All screws are made of stainless steel. The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or falling out is simply not possible.

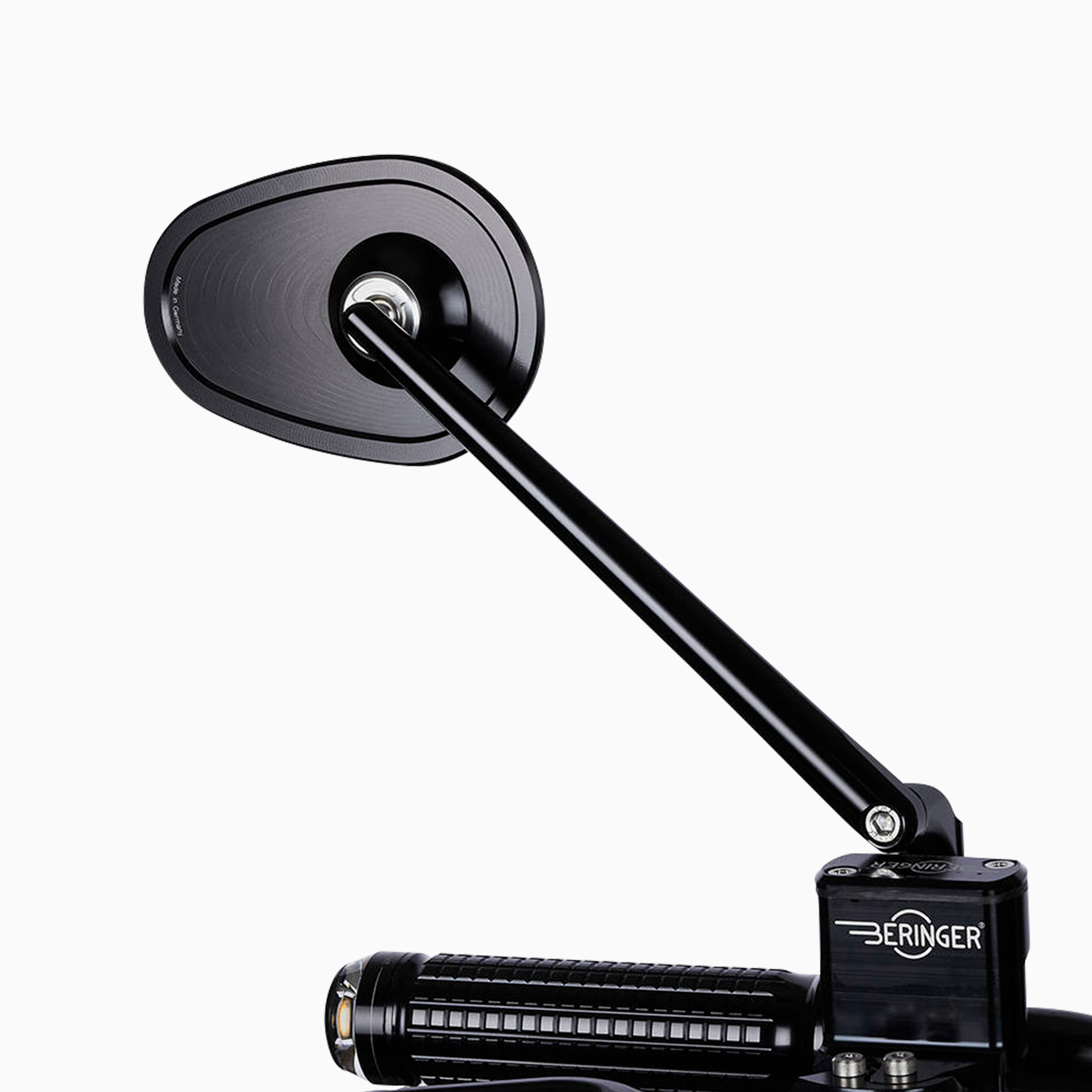

The mounting mirror can be mounted on any mirror thread M10 on the handlebar. Three mounting screws with different thread are supplied. The mirror is suitable for the left and right side.

Cleaning: Use a mild cleaning agent and a microfiber cloth to remove dirt, dust and other residues from the surface of the mirrors. Avoid abrasive cleaning agents that could damage the surface.

• Mirror body width: 114 mm (4.49")
• Mirror body height: 80 mm (3.15")
• Thickness of the mirror body without ball head: 4.5 mm (0.18")
• Length of the mirror arm: 150 mm (5.9") - 180 mm (7.1")
• Weight: 162 g / 0.357lbs

• 1x mo.view club add-on mirror, with ECE marking, with arm
• 1x screw M10 x 1.5
• 1x screw M10 x 1.25 right-hand thread
• 1x screw M10 x 1.25 left-hand thread
• QR code for mounting and operating instructions
