Breakout-Box

Universal interface for connecting indicator lights and sensors to the motoscope pro & motoscope chronoclassic 2

Central connection of all signal cables for indicator lights as well as temperature and pressure sensors. Convenient screw terminals make connection work quick and easy. The small dimensions of the box allow it to be concealed on the vehicle.

Data is exchanged from the breakout box to the instrument via a single cable. The breakout box is waterproof (IP69) and insensitive to vibration.

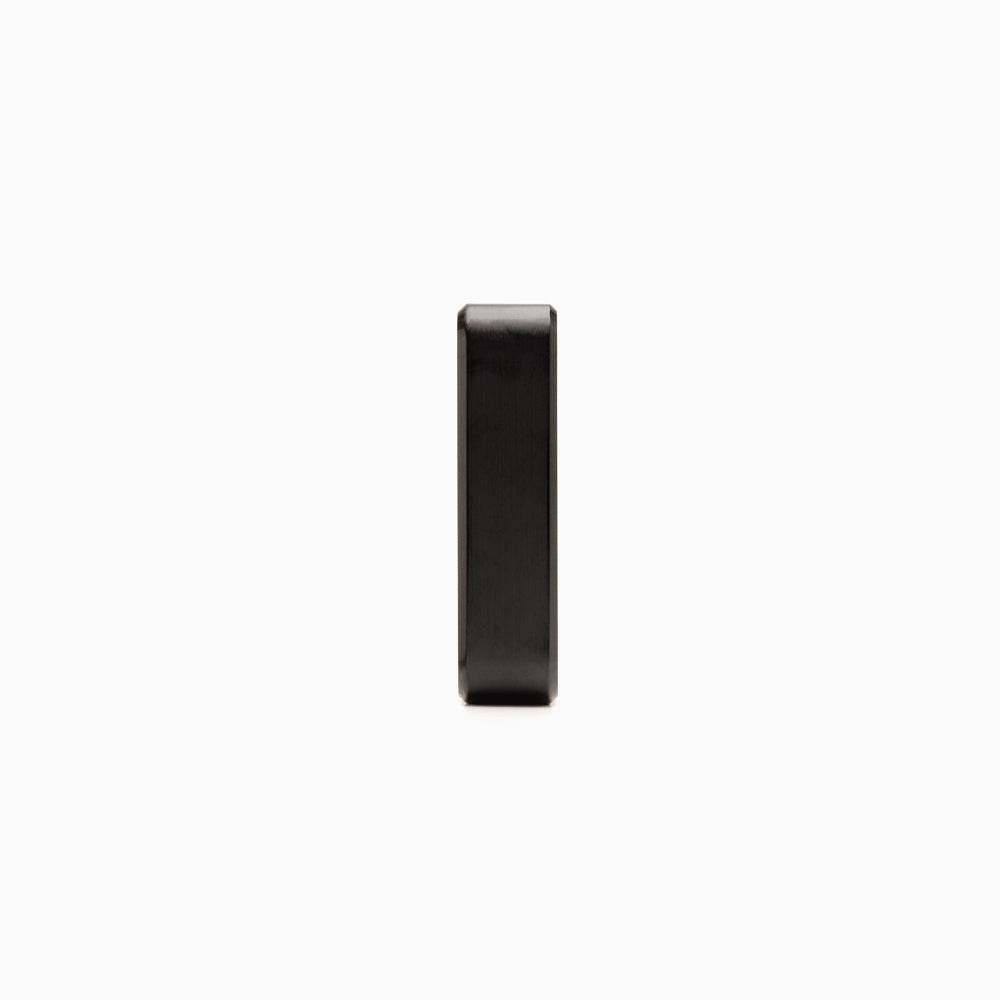

Dimensions type A: 28 x 39 x 10 mm (1.1" x 1.54" x 0.39")
Dimensions type B: 28 x 53 x 10 mm (1.1" x 2.09" x 0.39")

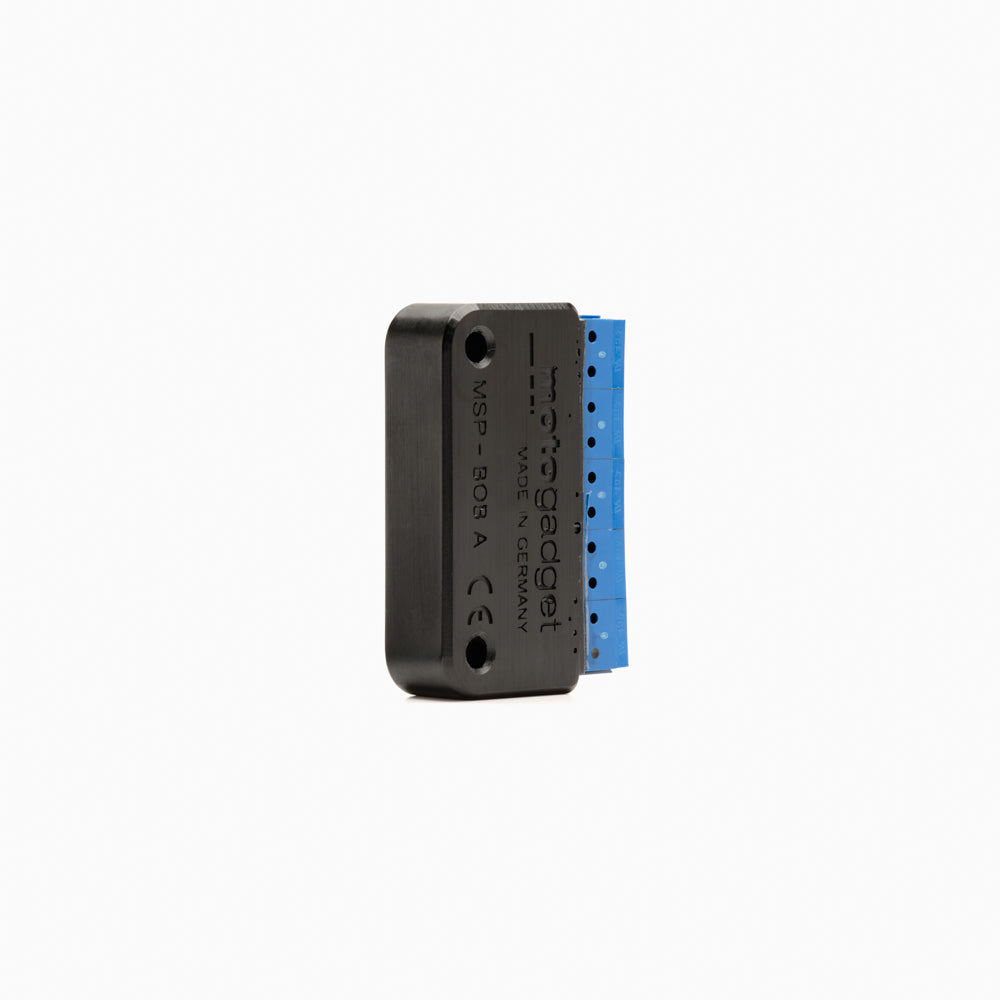

Breakout-Box A

• Tank content/reserve
• Oil pressure switch
• Turn signal right
• Turn signal left
• High beam
• Neutral
• Motor warning light

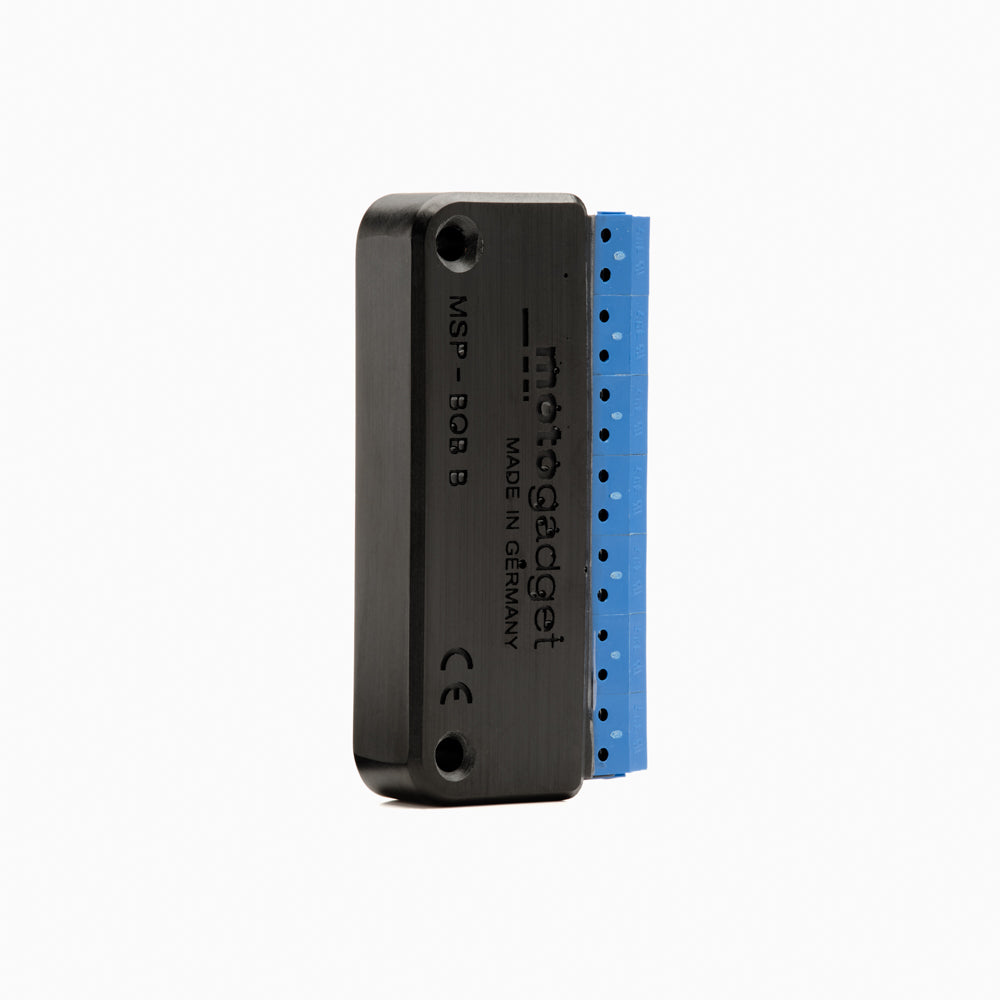

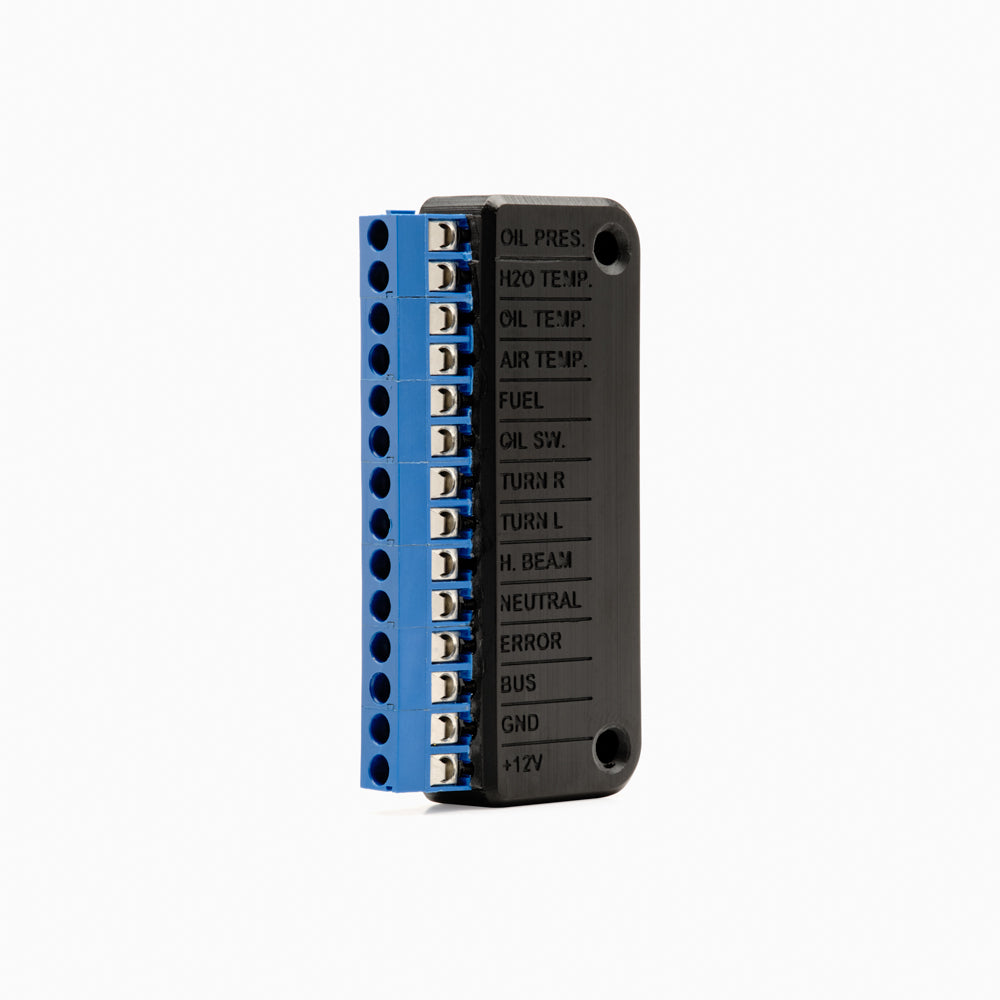

Breakout-Box B

• Tank content/reserve
• Oil pressure switch
• Turn signal right
• Turn signal left
• High beam
• Neutral
• Motor warning light
• Oil temperature sensor
• Water temperature sensor
• Air temperature sensor
• Oil pressure sensor
